Marshall Art

The Marshall Art has been converted from a pleasure craft to a unique survey vessel offering a flexible platform for various survey activities.

Marshall Art

The Marshall Art has been converted from a pleasure craft to a unique survey vessel offering a flexible platform for various survey activities.

Marshall Art

The Marshall Art has been converted from a pleasure craft to a unique survey vessel offering a flexible platform for various survey activities.

Marshall Art survey vessel at sea

Marshall Art

22m LOA
1.7m Draft
25m² Back deck

The vessel has been carefully modified to offer various survey capabilities including hydrographic and geophysical survey, environmental sampling and ROV inspection.

The Marshall Art is fully equipped with a towing A-Frame, folding knuckle-boom crane and the option of accessible hull-mounted or side mounted pole for survey instrumentation. Inside the spacious wheelhouse, a generous area is dedicated to online/offline operations. A fly bridge offers ready access to antenna fixtures without working at height complications.

The Marshall Art offers a standard of accommodation rarely experienced on a survey vessel. The Marshall Art offers 4 twin berth cabins available for the charterers, all finished to an exceptionally high standard. An open plan Galley and Mess area on the bridge offers a comfortable living area, and there are 3 showers and 3 toilets onboard the vessel in total.

Key Features:

  • Hydrographic Survey: The through-hull survey pipe with hull-mounted flange for Multibeam transducers enables clients to mobilise equipment quickly on our purpose-built launching rig with permanent access while on the rig. Pre-installed screens at the survey station also help to reduce mobilisation times.
  • Environmental Survey: The dedicated survey station, inbuilt monitors, 2-tonne A-frame, and joystick winch controls enable clients to perform grab sampling and camera drops comfortably.
  • ROV Support: The 2-tonne A-frame and dedicated client survey station make the Marshall Art an ideal solution for inspection-class ROVs.
  • UXO Survey: We are open to options for towing arrays of magnetometers and have experience designing survey booms.
  • Bird/Mammal Watching: With an open, spacious flybridge, the Marshall Art is ideal for a 360-degree view.

Download the Spec Sheet

The Marshall Art has been converted from a pleasure craft to a unique survey vessel offering a flexible platform for various survey activities.

Marshall Art survey vessel spec sheet

Specifications

Vessel Capabilities
Hydrographic Survey
Geophysical Survey
UXO Survey
Environmental Survey
Geotechnical Survey
ROV Support
Bird/Mammal Watching
Download Spec Sheet
Vessel Particulars

Classification

MCA Category 2 – 60 miles from Safehaven

Dimensions

22m LOA

Beam: 6m

Air Draught: 9m

1.7m Draft

Other

Engines & Propulsion

Engines

Caterpillar 3126TA 350HP

Thrusters

Fixed prop bow/stern thrusters

Generators

1 x 27KVA

1 x 21KVA 3 phase 415v

Speed

Cruising Speed: 9 knots

Survey Speed: 4 knots

Fuel Consumption

50 litres per hour @ 10 knots

Accommodation

Berths

13 personnel overall, 8-9 for charterers

Living Areas

Galley – Spacious working galley with ample capacity for 6-8 dining and separate lounge area

Working Areas

25m² Back deck

3 station survey desks with with multiple monitor options, including inbuilt with remote control for A-frame and winch from survey desk

Tank Capacities

MGO: 6.4 cuM

Fresh Water: 7500 litres

Deck Equipment

A-Frame

2 Tonne A-Frame with 1.5t hydraulic proportional winch controlled from survey station.

Moonpool

Crane

Crane: 2.5t/m - 370kg @ 5.2m, 720kg @ 3m

Cargo Load

Other

Sea water wash down pump for environmental samples. M20 Deck fixings are pre-mounted at 1m intervals for deck equipment.

Twistlocks installed for a 20 foot container centrally positioned on deck with option for a 10 foot container aft of wheelhouse

Dive System

Dive system overview

3 Diver system
Onboard 13 Bar LP Compressor
Inboard HP Compressor for HP bottle recharge
16 Bar HP system
3 x 175m umbilicals
3 integrated 200 litre LP Air receivers
3 x Diver CCTV inc Hard disk recording
UPS backup for all Dive equipment
Clear-Com communications with Bridge & entire vessel
Intergrated foothole ladder within hullform for water access
Bespoke Integrated Container for equipment storage
Rescue davits port and starboard

Moonpool

Cargo Load

Marshall Art survey vessel towed SBP
Flexible tow arrangements, including alongside towing

Hydrographic, Geophysical & UXO Survey

The Marshall Art offers a range of suitable deployment options for survey sensors.

The Marshall Art is fully equipped with a towing A-Frame, folding knuckle-boom crane and the option of accessible hull mounted or side mounted pole for survey instrumentation.

Inside the spacious wheelhouse a generous area is dedicated to online/offline operations. A fly bridge offers ready access to antenna fixtures without working at height complications.

  • M20 Deck fixings are pre-mounted at 1m intervals for deck equipment.
  • 3 station survey desks with with multiple monitor options, including inbuilt with remote control for A-frame and winch from survey desk

Our team are open to options for towing arrays of magnetometers and have experience designing booms.

ROV Survey & Inspection

The 2-Tonne A -Frame and dedicated client survey station make the Marshall Art an ideal solution for inspection class ROV's.

The vessel benefits from pre-mounted M20 Deck fixings at 1m intervals for deck equipment. The standard sensor mount can be equipped with a USBL for subsea positioning.

Marshall Art survey vessel MMO

Spacious Back Deck

The dedicated survey station, inbuilt monitors, 2 tonne A-Frame and joystick winch controls enable clients to handle equipment, perform grab sampling and camera drops comfortably.

Environmental Survey, Bird & Mammal Observation

The dedicated survey station, inbuilt monitors, 2 tonne A-Frame and joystick winch controls enable clients to perform grab sampling and camera drops comfortably.

A sea water wash down pump is provided for environmental samples.

Having an open spacious flybridge, the Marshall Art is ideal for a 360 degree view for bird and mammal observation.

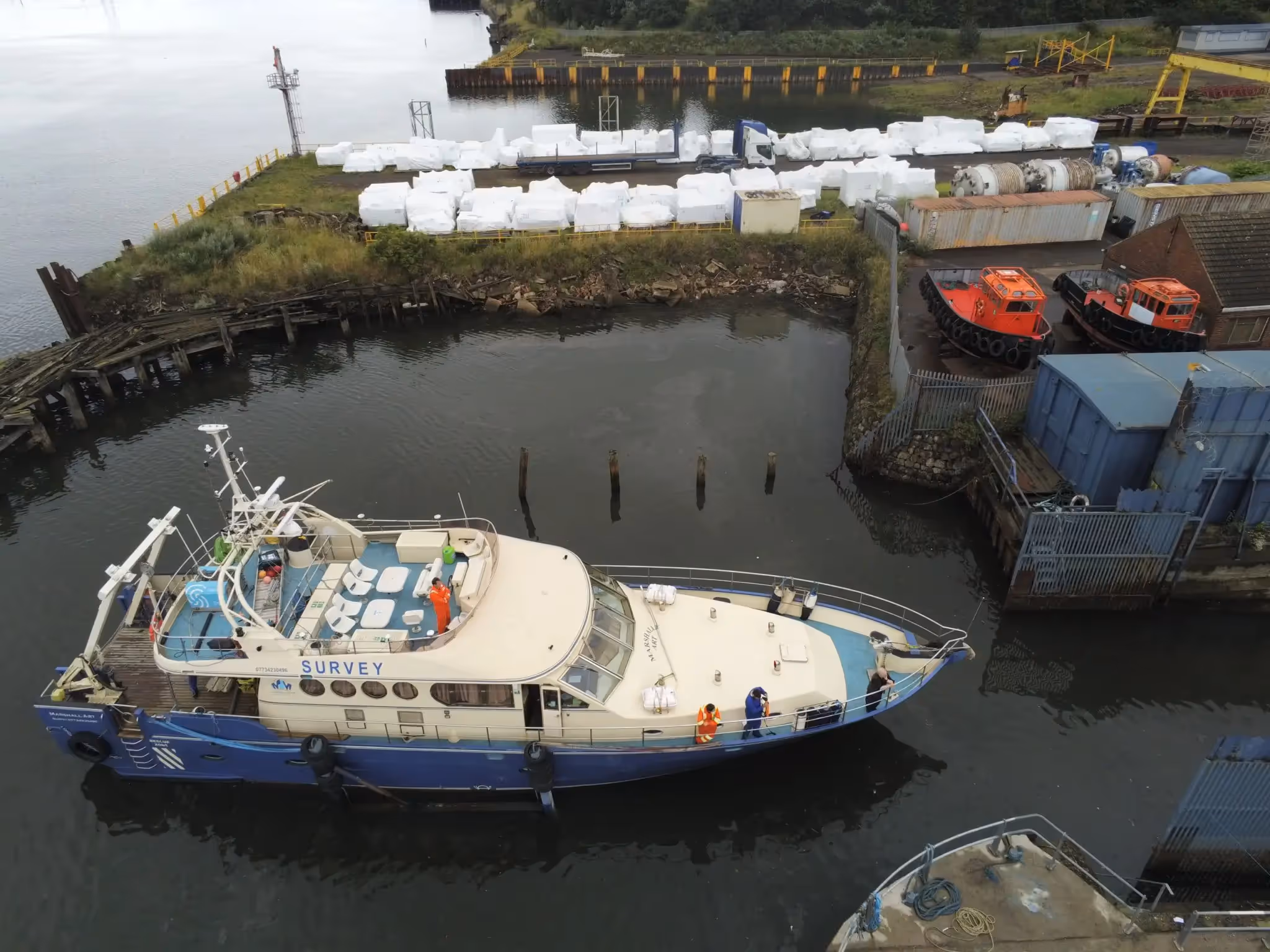

Marshall Art survey vessel

Superior Accommodation

Accommodation of this standard is rarely seen on a survey vessel.

The Marshall Art offers 4 Double Berth cabins available for the charterer, all finished to an exceptionally high standard. An open plan Galley and Mess area on the bridge offers a comfortable living area, and there are 3 showers and 3 toilets onboard the vessel in total.

The accommodation standard on the Marshall Art offers a first-class feel, which is highly unusual for a survey vessel or workboat.

Vessel Drawings

cm-1_-whitecm-3-whitecm-pole-boom-whitecm-2-whitecm-pole-boom-white
